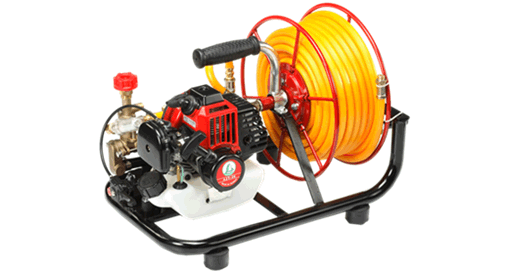

Portable Power Sprayer

Portable Power Sprayer
Product Name : Portable Power Sprayer
Product Model : AJT-268M
Product Description

Product Name: Portable Power Sprayer
Model: AJT-268M

    Enlargement



    Product Character

    Model No.:AJT-268M
    Pump: Horizontal gear-driving type
    Plunger: 1 unit (two-way operation)
    Cylinder: 2 units
    Dia. of plunger: 16mm
    Stroke: 9mm
    Spraying volume: 7.2liter/min
    Pressure: 30-35 kg/cm2
    Engine: Taiwan (AJT-26)
    Horsepower: 1.4 HP
    Air consumption: 25.6 c.c.
    Length of hose: 20m-50m
    Mixing ratio of fuel: 25:1
    L x W x H: 52 x 34 x 34 (cm)
    Weight: 16.5kg
